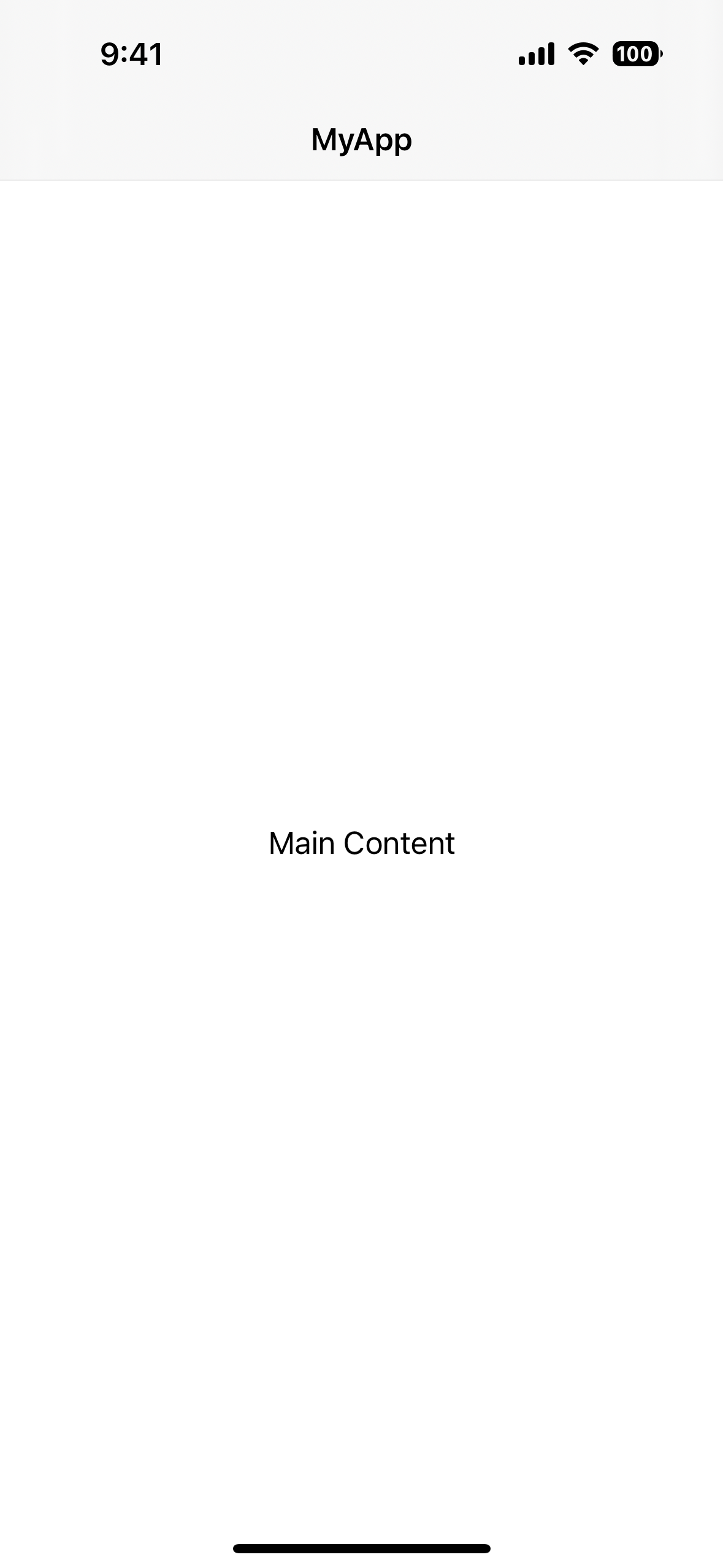

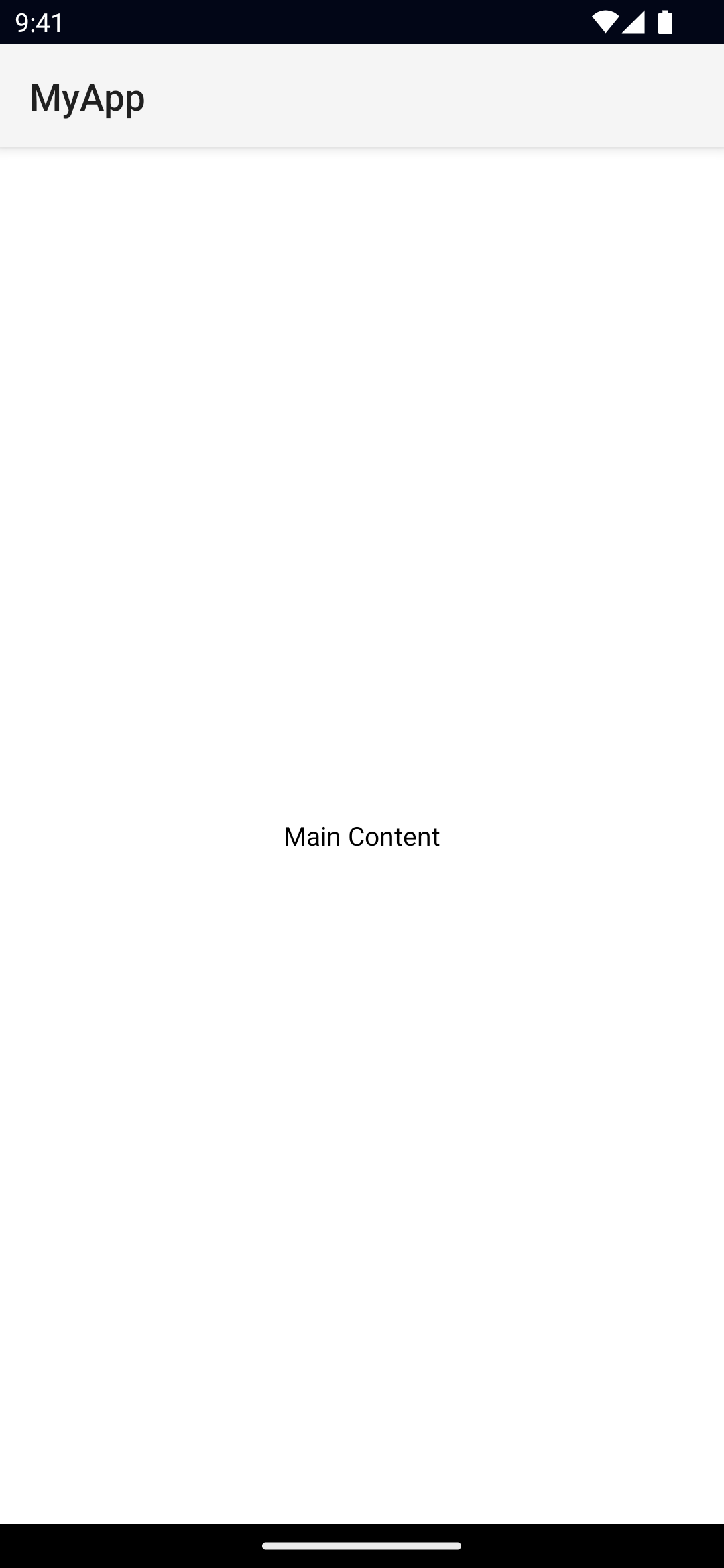

<Page> is a UI component for representing screens that users are able to navigate to through a Frame. A Page itself can only contain a single child view with the exception of the ActionBar which has it's own special "slot".

xml
<Page>
  <ActionBar title="MyApp" />

  <!-- the main content - must be a single view -->
  <GridLayout>
    <Label text="Main Content" />
  </GridLayout>
</Page>

Page Lifecycle ​

A page emits various events during navigation that you can use to update data/state in your app.

Frame and Page lifecycle

Lifecycle event examples ​

Navigating forward and back
bash
# frame.navigate(mainPage) - initial navigation
mainPage    > navigatingTo (isBackNavigation: false)
mainPage    > loaded
mainPage    > navigatedTo (isBackNavigation: false)

# frame.navigate(detailsPage)
mainPage    > navigatingFrom (isBackNavigation: false)
detailsPage > navigatingTo (isBackNavigation: false)
detailsPage > loaded
mainPage    > unloaded
mainPage    > navigatedFrom (isBackNavigation: false)
detailsPage > navigatedTo (isBackNavigation: false)

# frame.goBack()
detailsPage > navigatingFrom (isBackNavigation: true)
mainPage    > navigatingTo (isBackNavigation: true)
mainPage    > loaded
detailsPage > unloaded
detailsPage > navigatedFrom (isBackNavigation: true)
detailsPage > disposeNativeView # since it's no longer in the backstack
mainPage    > navigatedTo (isBackNavigation: true)
Navigating forward and clearing history
bash
# frame.navigate(mainPage) - initial navigation
mainPage    > navigatingTo (isBackNavigation: false)
mainPage    > loaded
mainPage    > navigatedTo (isBackNavigation: false)

# frame.navigate(detailsPage, { clearHistory: true })
mainPage    > navigatingFrom (isBackNavigation: false)
detailsPage > navigatingTo (isBackNavigation: false)
detailsPage > loaded
mainPage    > unloaded
mainPage    > navigatedFrom (isBackNavigation: false)
mainPage    > disposeNativeView
detailsPage > navigatedTo (isBackNavigation: false)

# frame.goBack() - no-op, there's nothing in the backstack.
Navigating forward without a backstack entry
bash
# frame.navigate(mainPage, { backstackVisible: false }) - initial navigation
mainPage    > navigatingTo (isBackNavigation: false)
mainPage    > loaded
mainPage    > navigatedTo (isBackNavigation: false)

# frame.navigate(detailsPage)
mainPage    > navigatingFrom (isBackNavigation: false)
detailsPage > navigatingTo (isBackNavigation: false)
detailsPage > loaded
mainPage    > unloaded
mainPage    > navigatedFrom (isBackNavigation: false)
mainPage    > disposeNativeView # since backstackVisible: false, we won't be able to reach mainPage after this point
detailsPage > navigatedTo (isBackNavigation: false)

Examples ​

Getting a reference to the current Page ​

NativeScript provides various ways to access the current Page instance.

Via Page Events ​

Any events emitted by the Page will have a reference to the Page itself via args.object. For example:

ts
// loaded event
onPageLoaded(args: LoadEventData) {
  const page = args.object as Page;
}

// navigatedTo event
onNavigatedTo(args: NavigatedData) {
  const page = args.object as Page;
}

Via the page property of any View within the Page ​

Any View nested inside a Page hierarchy can access the Page via the page property.

ts
onTap(args: EventData) {
  const button = args.object as Button
  const page = button.page as Page;
}

Via the currentPage property of a Frame instance ​

The currently displayed page can be accessed via the Frame, to get a reference to the frame you can use Frame.topmost() for example:

ts
import { Frame } from '@nativescript/core'

const frame = Frame.topmost()
const page = frame.currentPage // Page

See Frame, Getting a Frame Instance.

Handling various Page events ​

A page emits various events during it's lifecycle, navigation events and general View events like loaded/unloaded/layoutChanged etc.

xml
<Page
  loaded="onLoaded"
  unloaded="onUnloaded"
  navigatedFrom="onNavigatedFrom"
  navigatedTo="onNavigatedTo"
  navigatingFrom="onNavigatingFrom"
  navigatingTo="onNavigatingTo"
  layoutChanged="onLayoutChanged"
>
  <ActionBar title="MyApp" />
  <!-- ... -->
</Page>
ts
onLoaded(args: EventData) {
  const page = args.object as Page
}

onUnloaded(args: EventData) {
  const page = args.object as Page
}

onLayoutChanged(args: EventData) {
  const page = args.object as Page
}

onNavigatedTo(args: NavigatedData) {
  const page = args.object as Page
  console.log(args.isBackNavigation)
}

onNavigatingFrom(args: NavigatedData) {
  const page = args.object as Page
  console.log(args.isBackNavigation)
}

onNavigatedFrom(args: NavigatedData) {
  const page = args.object as Page
  console.log(args.isBackNavigation)
}

Props ​

actionBar ​

ts
actionBar: ActionBar

Gets or sets the ActionBar for this page.

See ActionBar.

actionBarHidden ​

ts
actionBarHidden: boolean

Allows hiding the ActionBar.

Defaults to false.

frame ​

ts
frame: Frame

The Frame instance containing the page.

See Frame.

ts
navigationContext: any

A context used to pass data during navigation.

backgroundSpanUnderStatusBar ​

ts
backgroundSpanUnderStatusBar: boolean

Gets or sets whether the background of the page spans under the status bar.

Defaults to false.

androidStatusBarBackground ​

ts
androidStatusBarBackground: Color

Gets or sets the color of the status bar on Android devices. Android only.

See Color.

enableSwipeBackNavigation ​

ts
enableSwipeBackNavigation: boolean

Gets or sets whether the page can be swiped back on iOS. iOS only.

Defaults to true.

statusBarStyle ​

ts
statusBarStyle: 'light' | 'dark'

Gets or sets the style of the status bar.

...Inherited ​

For additional inherited properties, refer to the API Reference.

Events ​

loaded ​

ts
on('loaded', (args: EventData) => {
  const page = args.object as Page
  console.log('Page loaded')
})

Emitted after the page has been loaded.

ts
on('navigatingTo', (args: NavigatedData) => {
  const page = args.object as Page
  console.log('Page is being navigated to:', args.isBackNavigation)
})

Emitted before the app has navigated to the current page.

ts
on('navigatedTo', (args: NavigatedData) => {
  const page = args.object as Page
  console.log('Page has been navigated to:', args.isBackNavigation)
})

Emitted after the app has navigated to the current page.

ts
on('navigatingFrom', (args: NavigatedData) => {
  const page = args.object as Page
  console.log('Page is being navigated from:', args.isBackNavigation)
})

Emitted before the app has navigated away from the current page.

ts
on('navigatedFrom', (args: NavigatedData) => {
  const page = args.object as Page
  console.log('Page has been navigated from:', args.isBackNavigation)
})

Emitted after the app has navigated away from the current page.

Native component ​
